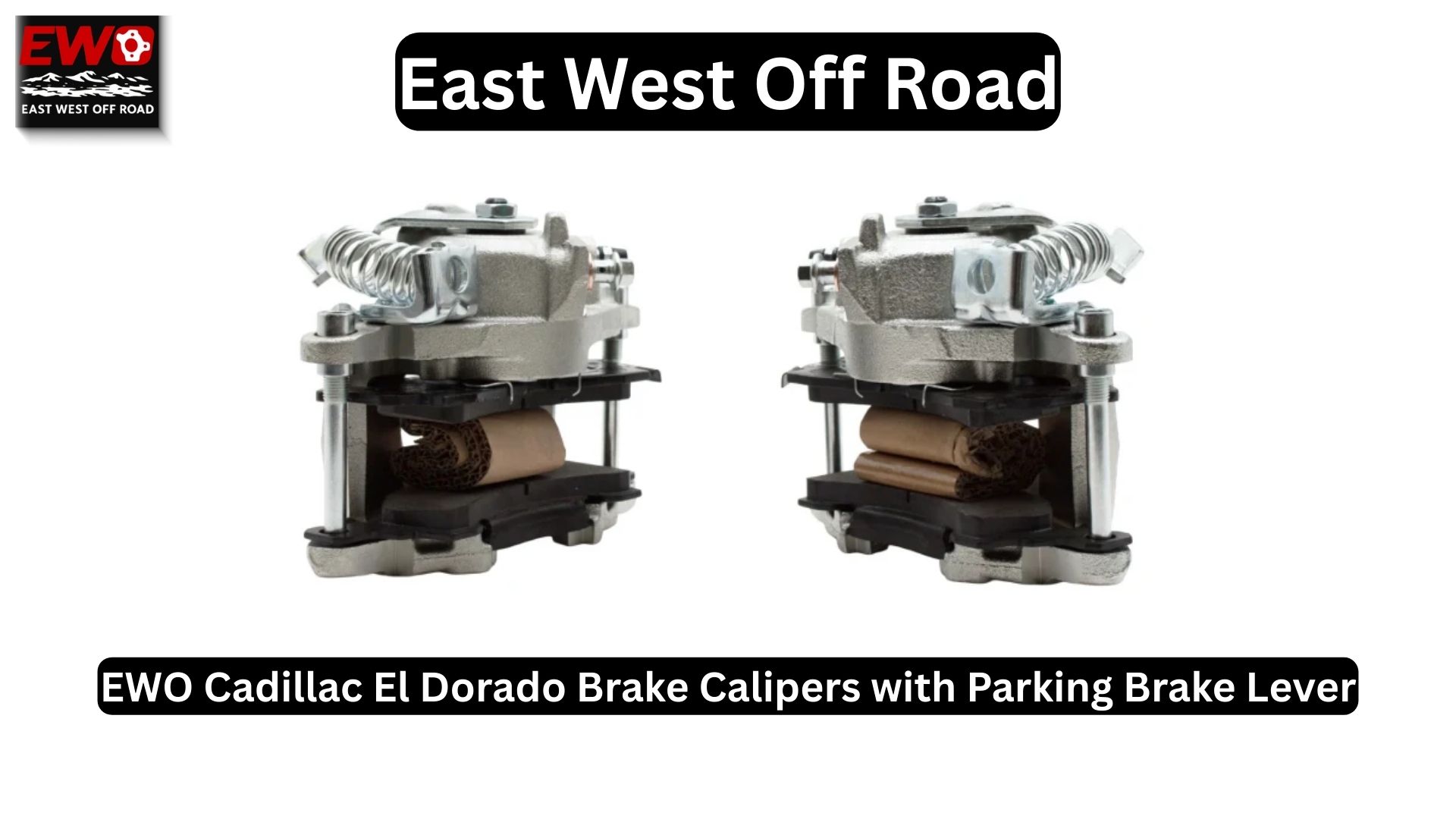

The No-Compromise Guide to 1-Ton Rear Disc Conversions with EWO Upgrading a heavy-duty axle from drums to discs is one of the best modifications you can make for stopping power. However, it often involves a major compromise: losing the parking brake. For builders who refuse to cut corners, the EWO Cadillac El Dorado Brake Calipers (Item EWO E63013) are the only solution. Whether you are restoring a classic or building a rock crawler, these East West Off Road brake calipers bridge the gap between performance and legality. Here is why they are the mandatory centerpiece for any street legal rear disc conversion. (https://www.eastwestoffroad.com/product/ewo-cadillac-el-dorado-brake-calipers-with-parking-brake-lever) Technical Superiority: Why 1976-1978 Calipers? The 1976-1978 Cadillac Eldorado rear calipers are an engineering anomaly. They were designed for massive cars, making them the perfect match for 3/4 ton truck rear disc conversion applications. Unlike standard calipers, they are hydro-mechanical rear calipers. This means they utilize hydraulic fluid for stopping but feature an internal screw mechanism for a mechanical emergency brake caliper function. While a GM K20 brake caliper or GM V20 brake caliper might fit the bracket, they lack the parking brake. The EWO unit is a true integrated parking brake caliper, offering the safety of a mechanical backup without the complexity of a drum-in-hat setup. JB6 Specifications Our units are built to the JB6 GM rear calipers standard. They are large piston Eldorado calipers featuring a 2 15/16 inch piston. This large bore ensures your 1 ton axle disc swap retains the hydraulic clamping force needed to lock up 37-inch tires. Axle Compatibility: The Universal 14-Bolt & Dana 60 Solution The EWO E63013 is the universal "skeleton key" for 8-lug axles. Using the standard 7 inch mounting pin spacing, they fit almost any aftermarket bracket. The 14-Bolt Ecosystem For a GM 14 Bolt rear disc conversion, these are essential. They work seamlessly with: SRW 14 bolt disc brackets (Single Rear Wheel) DRW rear disc conversion (Dual Rear Wheel) Cab and Chassis disc brake kit (Narrow Hubs) Ford & Dodge Fitment These are also the correct El Dorado parking brake caliper for a Dana 60 rear disc conversion or Sterling 10.25 disc brakes swap. Even for a lighter Chevy K20 rear disc upgrade, they are the superior choice. The "Nub" Factor: D122 vs D52 Pads The most critical detail in this installation is the friction material. You must use D122 brake pads. The EWO caliper uses an anti-rotation piston mechanism to self-adjust. The D122 brake pads feature a specialized brake pads with locking nub that locks into the piston face. The Risk: Many cheap kits supply D52 pads. The Consequence: The difference in D122 vs D52 pads leads to caliper piston rotating. This disconnects the internal adjuster, and your parking brake won't hold. We only supply loaded rear brake calipers with the correct pads. Installation Masterclass: Plumbing and Bleeding A 14 Bolt disc brake swap requires precise plumbing to function correctly. Fittings: We include 7/16-20 banjo bolts (Imperial). If you are adapting GM V20 truck brakes with metric lines, we also have the 10mm x 1.5 banjo bolt. Use steel braided brake lines to accommodate suspension travel. Bleeding: We use a GM dual-bleeder caliper casting. This ensures a bleeder screw is always at the top, making bleeding rear disc brakes simple. Troubleshooting: Achieving a Firm Pedal If you have a spongy pedal after disc swap, it is usually an adjustment or hydraulic balance issue. Pre-adjusting rear calipers: You must mechanically pump the heavy duty parking brake lever to push the piston out before bleeding. Ratchet mechanism adjustment: Ensure the lever clicks and holds tension. Hydraulics: Perform a residual pressure valve removal (discs don't need residual pressure) and install an adjustable proportioning valve. You may also need a master cylinder upgrade for 4 wheel disc to move enough fluid. Maintenance: Keep rear caliper slide pin lubrication fresh to prevent binding. Conclusion Don't let a "parts store special" ruin your build. Join the EWO Army brake parts community and choose the off road brake calipers that work. With EWO Cadillac El Dorado Brake Calipers, you get a rear disc parking brake that is safe, legal, and tough as nails. (https://www.eastwestoffroad.com/product/ewo-cadillac-el-dorado-brake-calipers-with-parking-brake-lever)
