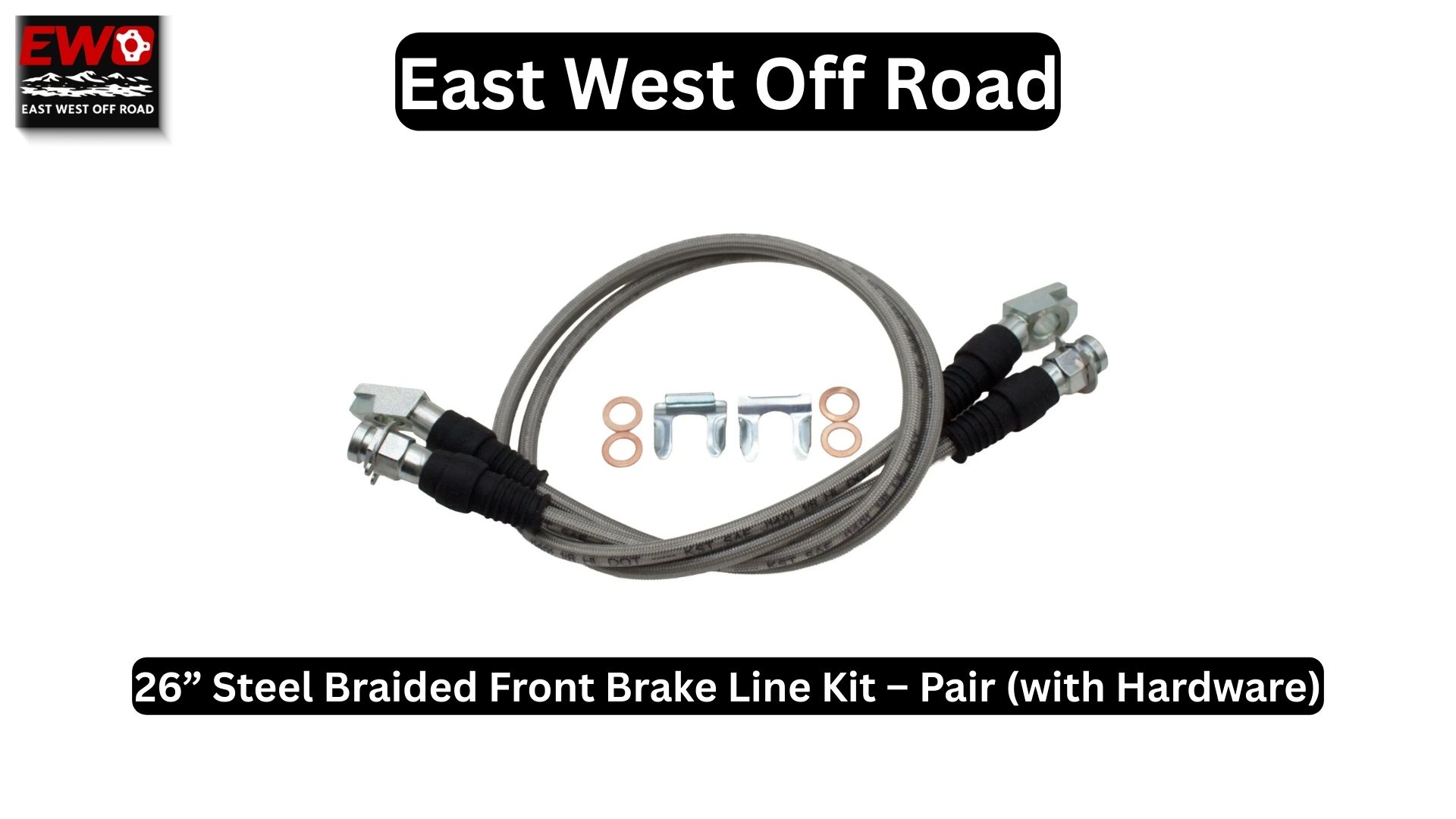

Category: Fabrication / Suspension Tech Reading Time: 6 Minutes You have welded the truss, set the pinion angle, and cycled the suspension. Your Solid Axle Swap brake kit is nearly complete. But as you lower the vehicle onto its own weight, you realize a critical oversight: the stock brake line mounting points on the frame no longer align with your new Dana 60 Kingpin front axle. Routing hydraulic lines on a custom off road disc brake conversion is an art form. Do it wrong, and a line gets pinched in a coil spring or ripped out by a tire lug. Do it right, and your rig looks like a pro-built rock bouncer brake plumbing masterpiece. In this guide, we explore the best practices for routing 26 inch steel braided brake lines on high-travel suspensions and why the EWO brake lines (Part E63014 brake lines) are the fabricator's choice for a clean install. The "Slack" Equation: Calculating Length for 4-Link Systems On a stock Chevy K30 brake lines setup, the suspension moves in a predictable vertical path limited by leaf springs. On a modern Jeep JK 1-ton swap or Toyota Tacoma SAS brake lines build with a 4-link, the axle travels in an arc. When the axle drops (droops) and articulates, the caliper moves significantly further away from the frame than stock. The Risk: Standard 18-inch lines become tension straps at full droop, leading to suspension droop brake line limit failures. The Solution: You need extended brake lines that offer enough slack for the drop without being so long they loop into the wheels. The East West Offroad brake kit provides 26 inch brake lines, the ideal length for brake lines for 6 inch lift to 10-inch lift scenarios. The "Anchor" Point: Why Weld-On Tabs Are Mandatory Zip-ties are for holding cables, not safety-critical heavy duty front brake lines. A professional build requires a dedicated transition point where the hard line meets the flex line. The EWO 26” kit stands out from generic auto parts store options because it includes weld on brake line tabs and brake line retaining clips. Fabrication Tip: Cycle your suspension to full bump (compression) and full droop (extension). Find the "neutral" spot on the frame rail—usually near the shock tower—where the steel braided flex lines can form a smooth "U" shape throughout the travel. Weld the chassis tabs for brake lines there. This ensures your flexible brake lines for rock crawling never bind or rub. The Connection: Navigating the Banjo Jungle Connecting a 1980s axle to a 2020s chassis involves adapting different thread standards. At the Caliper: Most Kingpin Dana 60 parts (specifically 1979-1991 GM calipers and RuffStuff dual-bleed calipers) use a metric inlet. The EWO kit simplifies this with pre-installed 10mm banjo bolts (specifically 10mm x 1.5 banjo fitting) and copper crush washers 10mm. Using the wrong 7/16” banjo on these calipers is a guaranteed leak. At the Frame: Whether you are building a Dodge W250 Cummins brake lines restoration or a custom buggy, the industry standard for hard lines is the 3/8-24 inverted flare brake line. This kit terminates with that exact female fitting, allowing you to connect a universal 3/16 brake line hose directly, often without needing an extra inverted flare to banjo adapter. Performance: The "Hard Pedal" Advantage Beyond routing, the material of the hose dictates performance. Chevy V30 brake parts originally came with rubber hoses. Under the 1,000+ PSI of panic braking needed to stop 40-inch tires, rubber expands. This is the root cause of brake hose expansion symptoms and a spongy pedal. By upgrading to steel braided front brake lines featuring a PTFE lined brake hose core, you eliminate that expansion. The result is firmer pedal feel with improved braking response—vital for technical driving where you need to feather the brakes on a ledge. Plus, the stainless braid offers cut resistant brake lines protection against trail debris. Conclusion: The Final Detail Your brake lines are the veins of your rig. Don't leave them vulnerable. Whether you are finalizing a Jeep TJ Dana 60 swap or upgrading a GMC K3500 brake hoses system, the East West Offroad 26” Steel Braided Kit provides the length, hardware, and overheating brake fluid protection you need. It serves as a premium RuffStuff brake line alternative (comparable to R2539), offering ready to ship extended brake lines that let you finish your fabrication work with confidence. Get your routing hardware and lines here:(https://www.eastwestoffroad.com/product/26%22-steel-braided-front-brake-line-kit-pair-(with-hardware)
