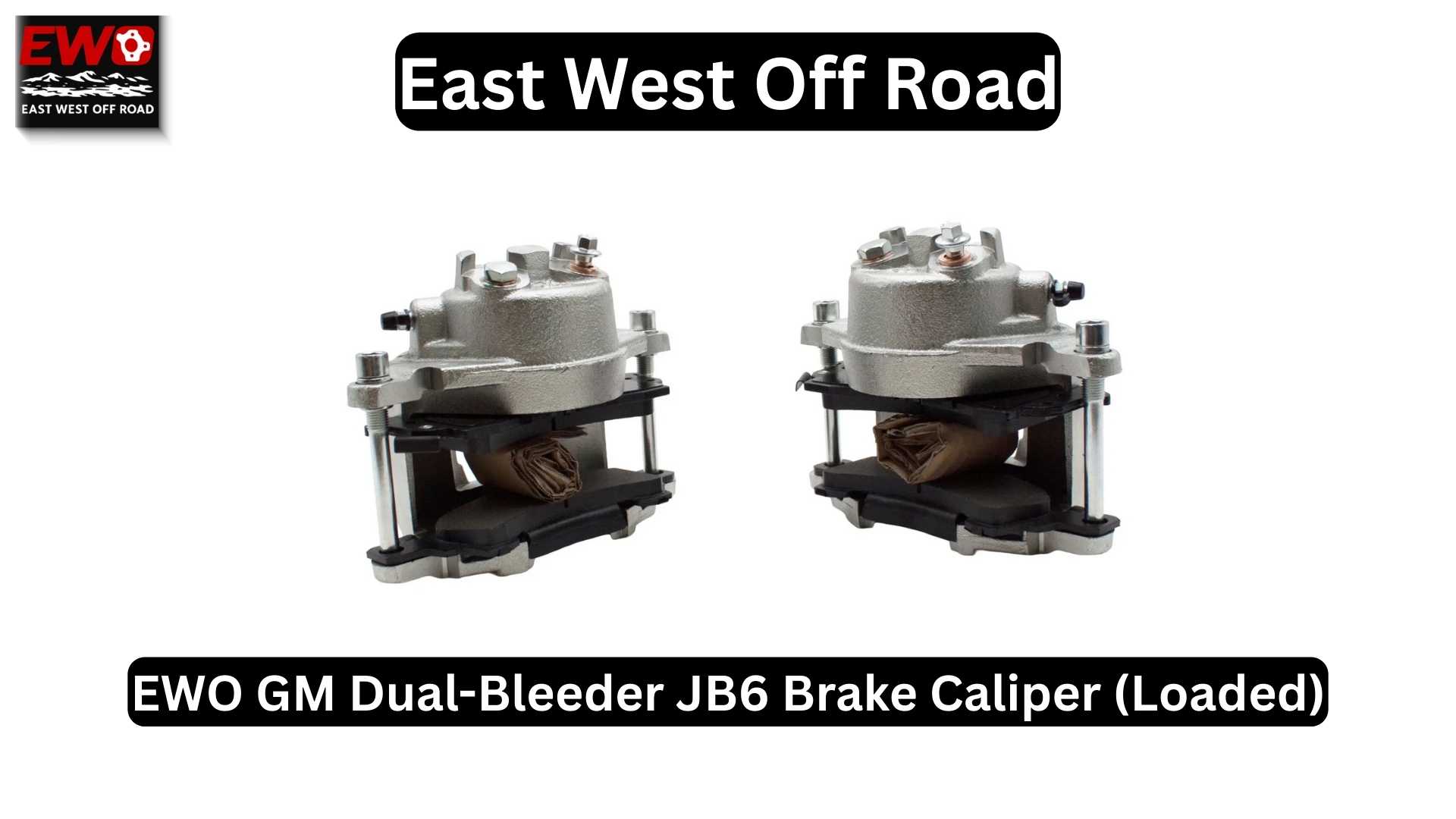

Modernizing Legacy Steel: The Ultimate Guide to the EWO GM Dual-Bleeder JB6 Brake Caliper For owners of a Square Body Chevy Truck, a Chevrolet K20 Pickup, or a heavy-duty GMC K2500, the transition from drum brakes to high-performance discs is a pivotal upgrade. The factory drum assemblies on the 10.5 Corporate Axle are not only heavy, but they also lack the heat dissipation required for modern trail use and heavy hauling. The industry-leading solution for a reliable rear disc brake conversion GM is the (). This purpose-built off road brake caliper (identified by part number EWO R2236 or R2236-Kit-1) is engineered to provide a "no-nonsense" braking foundation for custom axle builds. Engineering the Ambidextrous Solution for Axle Swaps The East West Off Road brake caliper solves the most common logistical problem in custom fabrication: side-specificity. While standard replacement units like the Cardone 18-4124, ACDelco 18FR596, or Raybestos FRC4124 are sold specifically for the left or right side, this unit features a Dual Bleeder Screw Design. The Versatility of the Dual Bleeder Caliper By utilizing a Dual Bleeder Caliper casting, this unit becomes a truly Ambidextrous Caliper. Whether you are performing a Dana 60 Rear Disc Swap, a Dana 44 HD upgrade, or a GM 14 Bolt Disc Brake Conversion, you can mount the same physical unit on either side. This simplifies your spare parts kit—one RuffStuff R2236 spare fits any corner of your rig. This versatility is particularly valuable when clocking RuffStuff Specialties Brakes or East West Off Road Brake Parts brackets at custom angles to clear suspension members. Precision Components and No Core Charges This is a 100% New Casting Caliper, meaning it is a No Core Charge Caliper. You avoid the "core charge trap" common with remanufactured parts-store units, making it the more affordable choice for builders who don't have old cores to trade in. Each Loaded Caliper Assembly features a high-grade Cast Iron Brake Caliper body designed for maximum rigidity under high line pressures. Technical Superiority: The 74mm Piston Architecture The EWO GM JB6 brake caliper is built to the GM RPO JB6 standard (originally for 7,200 lbs GVW vehicles). This platform is the "Goldilocks" of hydraulic performance, providing massive clamping force without requiring a massive fluid volume increase. Optimized Clamping Force for 1-Ton Swaps At the heart of this GM disc brake conversion caliper is a massive 74mm Piston Caliper (approximately 2-15/16" Piston). Piston Material: Each unit features a Steel Piston Brake Caliper design, which is more resistant to heat-induced swelling and corrosion than plastic phenolic pistons. Hydraulic Balance: The 74mm piston is perfectly matched to stock GM RPO JD6 (Hydroboost) systems and vacuum master cylinders found in a Chevy Suburban 2500 or C20 Pickup. Unlike larger JB7 calipers, which can cause a low pedal, the JB6 maintains a firm, predictable response. Direct Bolt-On Compatibility The Single Piston Floating Caliper design utilizes a standard 7.045" Mounting Span. This allows it to function as a Slider Caliper that bolts directly to standard 3/4-ton brackets. Each kit includes a Metric Banjo Bolt (M10-1.5 Inlet) hardware set to ensure a leak-free interface with your existing hydraulic lines. Maximizing Friction: The D52 Pad Ecosystem This JB6 brake caliper loaded assembly arrives pre-installed with high-quality Semi-Metallic Brake Pads. However, because it utilizes the industry-standard FMSI D52 shape (often called GM Large Caliper Pads), builders have access to the world's largest aftermarket of friction material. Performance Compounds for Every Terrain Whether you are building a K30 Single Rear Wheel restoration or a hardcore 1-Ton Axle Swap rig, you can tune your () with specific compounds: Street/Strip: Wilwood BP-10 or Wagner MX52 for smooth response and low dust. Heavy Hauling: Hawk HB103 for extreme-duty fade resistance. Racing: Performance Friction Carbon Metall (Carbon Metallic) for high-temperature resilience during track or desert events. By providing this () as a complete, ready-to-run package, East West Off Road ensures that your braking system is as simple to maintain as it is powerful. Frequently Asked Questions (FAQ) Is this GM 3/4 ton brake caliper compatible with 15-inch wheels? In most rear disc brake conversion GM setups, this caliper will clear 15-inch steel wheels. However, some thick aluminum wheels or high-backspace wheels may require very minor clearancing of the non-structural casting ribs. What vehicles originally used the Chevrolet 3/4 Ton 4WD Front Caliper? The JB6 platform was standard equipment on Chevrolet K20 Pickup and GMC K2500 models from the late 1970s through the 1980s. This makes it a proven, easy-to-service platform across North America. Why is the dual-bleeder feature important for my build? If the bleeder valve is positioned lower than the top of the piston, air will remain trapped, leading to a spongy pedal. The Dual Bleeder Screw Design ensures that regardless of how your axle is clocked, you always have a bleeder at the highest point of the cylinder.
