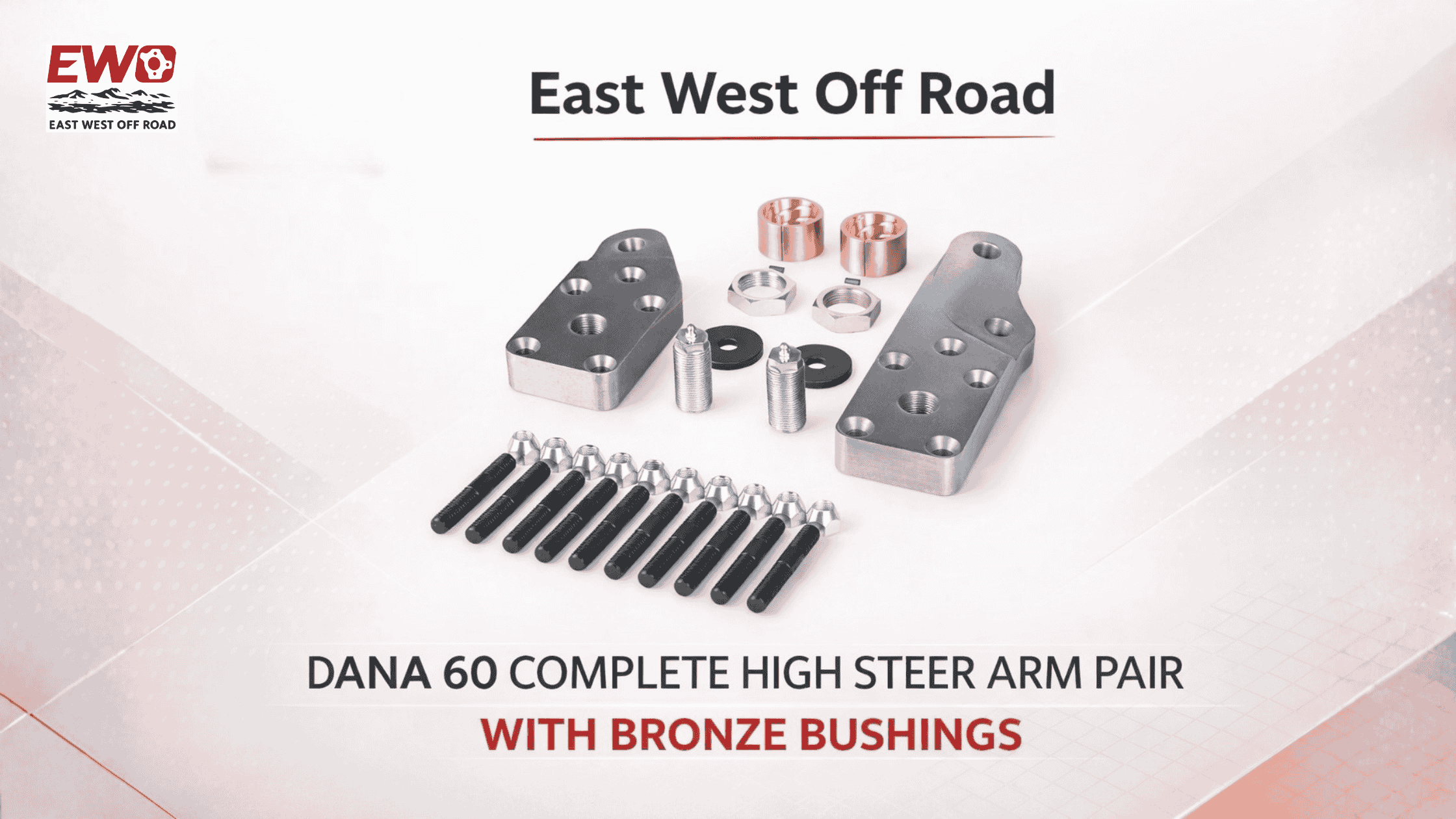

How to Evaluate Off Road Steering Parts for a High-Steer Build Buy Now: https://www.eastwestoffroad.com/product/dana-60-complete-high-steer-arm-pair-with-bronze-bushings A useful comparison of off road steering parts goes beyond the material named in a product title. Builders should compare dimensions, patterns, included hardware, intended axle type, service needs, and the components that must be supplied elsewhere. East West Off Road lists measurable details for its Dana 60 Kingpin arm pair: two arms, 1.25-inch thickness, domestic billet blocks, a five-hole pattern, bronze bushings, and counted hardware. Those details create a sound basis for fitment questions without relying on unsupported performance promises. Quick Takeaways •Compatibility begins with a confirmed Dana 60 Kingpin axle. •The arm pair covers driver and passenger sides with a verified thickness of 1.25 inches. •Count and identify the knuckle mounting pattern before assuming the five-hole arms fit. •A Kingpin bronze bushing set and the listed arm and mounting hardware are part of the package. •Tie rods, drag links, joints, pitman arms, steering boxes, and knuckles are not included. What Off Road Steering Parts Can and Cannot Define An arm pair is an interface between the knuckles and steering links. It does not determine the finished tie-rod length, drag-link angle, joint selection, or chassis-side connection. Those variables must be designed around the real vehicle, then checked as the steering and suspension move. No arm can confirm the rest of a build by itself. The missing linkage components are not a defect in the package; they define its scope. Buyers should decide whether that scope matches a fabricator-led project or whether they need a different, more comprehensive parts solution. Turn Every Product Claim Into a Verifiable Question If a part is described as heavy duty, ask which published dimension or material detail supports that description. If it is said to fit a Dana 60, ask whether that means Kingpin or ball joint and which knuckle pattern is required. If the word “kit” appears, check the exact inclusion list rather than assuming the steering links are present. This method keeps the comparison practical. It also helps a buyer ask the seller or installer focused questions about an unknown axle, instead of trying to resolve compatibility after the vehicle is already disassembled. A Closer Look at the Arm-and-Bushing Package East West Off Road pairs two five-hole arms with upper Kingpin service pieces. The arms are described as 1.25 inches thick and produced from domestic billet blocks. Those facts support a specification-based comparison without adding unsupported claims about ratings, testing, or universal vehicle fitment. Beyond the arms, the package supplies bronze Kingpin bushings and paired service hardware. It also contains ten 1/2-inch fine-threaded studs with ten tapered nuts. Those counts should be checked on receipt before any safety-critical steering assembly begins. Complete Package Contents Component Quantity Verified Detail Practical Relevance Driver-side high-steer arm 1 1.25-inch thick; domestic billet block; five-hole pattern One of two matched arms Passenger-side high-steer arm 1 1.25-inch thick; domestic billet block; five-hole pattern Completes the two-arm pair Kingpin bronze bushing set 1 set Supplied with hardware Refreshes the stated bushing set Threaded screws 2 Included arm hardware Paired arm component Grease fittings 2 Included arm hardware Supports service access Spacers 2 Included arm hardware Paired positioning hardware Jam nuts 2 Included arm hardware Paired retaining hardware Fine-threaded studs 10 1/2-inch; five per arm Ten total mounting points Tapered nuts 10 One for each supplied stud Ten matching tapered fasteners From Arm Thickness to Tapered Nuts A thick billet arm may be described within a heavy-duty category, but responsible evaluation remains tied to documented facts. Here, those facts are 1.25-inch thickness, domestic billet blocks, and a five-hole pattern. Final capacity and service behavior are not supplied and should not be invented. Hardware deserves its own inspection before assembly. Check counts, threads, tapers, and visible condition, and do not mix questionable old pieces into a safety-critical mount. The supplied list does not authorize a generic installation method or torque value. Confirm the Axle, Knuckles, and Moving Clearances A Kingpin housing and compatible five-hole knuckles are foundational requirements. If the axle history is unknown, inspect casting details and hardware or consult a knowledgeable shop. Do not fabricate the rest of the steering around an arm pattern that has not been physically verified. Complete fitment includes more than whether studs line up. Mock up the unsupplied tie rod and drag link, check the pitman-side connection, and examine movement relative to the suspension. Wheel backspacing and brake configuration can also change the available space. A Spec-Based Choice for Compatible Five-Hole Knuckles For an identified Kingpin axle with suitable five-hole knuckles, this arm pair can be compared using its actual thickness, construction description, bushing set, and hardware quantities. For any other axle or pattern, the fit should be considered unconfirmed until reliable measurements or manufacturer guidance establish otherwise. What to Verify Before Final Assembly A qualified installer should address worn mounting surfaces, damaged threads, uncertain Kingpin condition, or unclear geometry before the vehicle returns to service. Follow component-specific procedures, inspect all movement after installation, and recheck the system according to the guidance supplied by the responsible manufacturer or shop. Pre-Purchase and Installation Checklist •Kingpin versus ball-joint design resolved •Five-hole mounting surfaces confirmed suitable •All components outside this package sourced •Vehicle-specific interference points checked •No generic torque values assumed •Professional review used where uncertainty remains Frequently Asked Questions What does the arm-and-bushing package contain? It includes one driver-side arm, one passenger-side arm, a Kingpin bronze bushing set, two threaded screws, two grease fittings, two spacers, two jam nuts, ten 1/2-inch fine-threaded studs, and ten tapered nuts. No steering links, joints, pitman arm, steering box, or knuckles are listed as included. Is this a matched left-and-right arm set? Both sides are included as a pair. The left and right arms share the stated thickness and five-hole arrangement. Inspect both knuckles independently, because matching arms cannot correct an unknown axle, a damaged mounting surface, or a knuckle with a different pattern. What verified construction details are provided for the arms? The documented arm thickness is 1.25 inches. That measurement should be considered during the clearance mock-up near wheels, joints, and other components. Domestic billet blocks are specified, but no additional material grade or strength rating is provided in the product details. Are Dana 60 Kingpin bronze bushings included? A bronze bushing set for the Kingpin application is part of the package, along with the paired smaller hardware shown in the inclusion list. Inspect the surrounding Kingpin components and mounting areas rather than assuming a new bushing alone resolves every wear or steering-play concern. What does the five-hole arm pattern mean for fitment? It means each arm is designed around five knuckle mounting positions. Compatibility is not established by the hole count alone; the pattern geometry and mounting surface must correspond. Verify the knuckle model or measurements instead of relying only on a Dana 60 label. Will these arms fit a ball-joint Dana 60? The verified application is a Dana 60 Kingpin axle. The supplied information does not support installing these arms or bronze bushings on a ball-joint axle. Confirm the axle visually or through reliable identification before comparing the five-hole knuckle pattern. Does this package contain an entire high-steer linkage system? No. This is an arm, bushing, and hardware package. It does not list a tie rod, drag link, steering joints, pitman arm, steering box, or knuckles. It can form part of a custom crossover or high-steer plan, but the remaining system must be selected and verified separately. When should a professional 4x4 steering installer be consulted? Check pattern and axle compatibility first, then inspect all mounting areas and plan the links around actual vehicle measurements. The completed system needs clearance, articulation, fastener, and alignment checks. Professional assistance is appropriate whenever steering fabrication, wear, or installation requirements are not fully understood. Buy From the Specification Sheet, Then Verify on the Vehicle A strong evaluation process separates documented facts from hoped-for results. Confirm every interface and identify all unsupplied pieces before installation. The East West Off Road high-steer arm package can then be reviewed as a defined group of off-road steering components rather than a universal solution.
