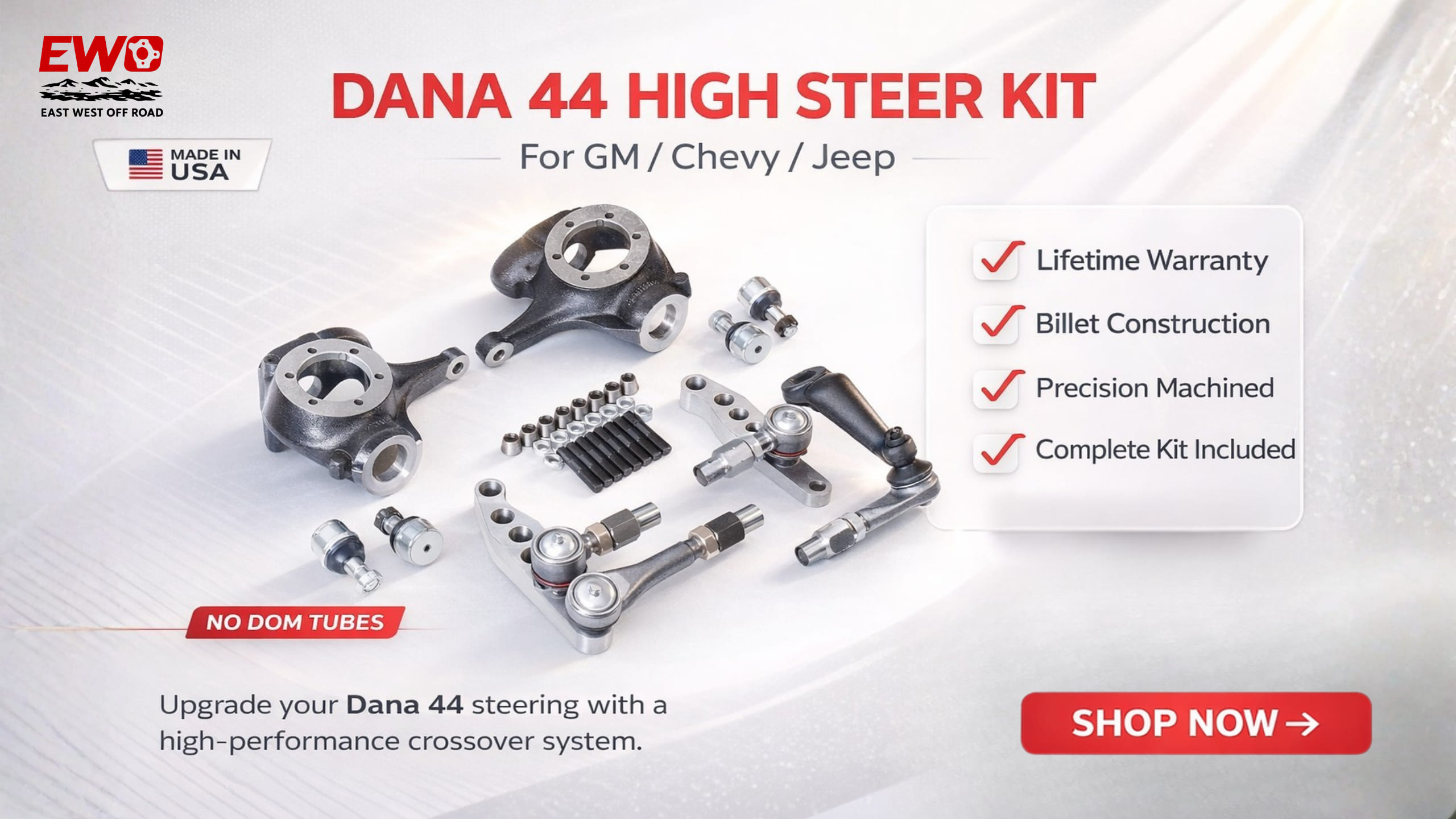

HD Crossover Steering Kit Guide for Dana 44 High Steer Builds An HD Crossover Steering Kit is a practical upgrade for GM, Chevy, and Jeep Dana 44 builds that have moved beyond stock ride height, stock tires, and factory steering geometry. When a truck or Jeep is lifted for trail use, rock crawling, overlanding, or custom 4x4 work, the original steering setup can start to show its limits. Factory push-pull steering systems were designed around factory suspension height. Once lift height changes, the drag link angle often changes too. That can lead to steering feedback, geometry problems, and bump steer symptoms on lifted vehicles. A properly matched Dana 44 crossover steering kit can improve steering angles and can help reduce bump steer when installed with compatible parts and correct steering geometry. It does not automatically eliminate bump steer, and every build should be checked for axle fitment, taper configuration, steering box setup, pitman arm spline count, tube sizing, and installation requirements before ordering. Why Lifted Dana 44 Builds Need Stronger Steering Dana 44 front axles are common in GM, Chevy, and Jeep off-road builds. They are often used in lifted trucks, trail rigs, rock crawlers, solid axle swaps, and custom 4x4 projects. The issue is that steering geometry changes when the vehicle is lifted. Larger tires also add more steering load. On rough terrain, the steering system has to handle repeated movement, impact, and suspension cycling. A factory-style setup may not be ideal for these conditions. That is why many builders choose a Dana 44 high steer kit or a complete 1-ton crossover high steer kit when upgrading the steering system. The East West Off Road GM/Chevy/Jeep Dana 44 Complete 1-Ton Crossover High Steer Kit with Knuckles is designed to provide the main steering components needed for a heavy-duty Dana 44 steering upgrade. What This Complete 1-Ton Crossover High Steer Kit Does This East West Off Road kit is built for heavy-duty crossover steering conversions on Dana 44 front axles. It includes the critical components needed for GM Dana 44 high steer conversion, Chevy Dana 44 crossover steering, and Jeep Dana 44 high steer conversion projects. The kit includes USA-made EWO driver and passenger Dana 44 flat top knuckles, heavy-duty 1.25 inch billet high steer arms, premium 1-ton tie rod ends, drag link ends, ball joints, mounting studs, conical washers, lock nuts, weld bungs, jam nuts, and a fully indexable 3 inch dropped pitman arm with 32 splines. DOM tubing is not included. This lets builders source DOM tubing locally and avoid oversized freight costs. Why Dana 44 Flat Top Knuckles Matter Dana 44 flat top knuckles are a key part of a crossover high steer conversion. They provide the flat mounting surface required for high steer arms. This kit includes USA-made EWO driver and passenger flat top knuckles with bottom-down taper. These knuckles are built for Dana 44 crossover steering applications and are part of the foundation of the steering system. For any GM, Chevy, or Jeep Dana 44 application, knuckle compatibility should be verified before ordering. Older axles, swapped axles, modified knuckles, and previous steering changes can affect fitment. Before ordering, confirm Dana 44 axle fitment, GM/Chevy/Jeep application, taper configuration, knuckle compatibility, and installation requirements. Why 1.25 Inch Billet High Steer Arms Matter The included Dana 44 billet high steer arms are precision-machined from domestic billet blocks and feature a massive 1.25 inch thick design. Based on the provided product details, the steering arms are backed by a lifetime warranty. High steer arms connect the steering linkage to the flat top knuckles. Their mounting surface, taper setup, hardware fitment, and steering geometry all matter in a crossover steering conversion. For lifted Chevy steering geometry, rock crawling steering kit builds, overland steering upgrade projects, and custom Dana 44 steering upgrades, the high steer arms are one of the most important parts of the system. Understanding Bottom-Down Taper Configuration This kit uses a bottom-down taper configuration. That detail is important because tie rod ends and drag link ends must seat correctly into the steering arm or knuckle. If the taper direction does not match the steering component, the steering end may not seat properly. That can cause unsafe fitment and installation problems. Builders should confirm taper configuration before ordering, especially on older GM, Chevy, or Jeep applications, custom builds, swapped axles, or vehicles with unknown steering history. Why DOM Tubing Is Not Included This is a crossover steering kit without DOM tubing. DOM tubing is intentionally not included. Long DOM tubing can create oversized shipping costs. By shipping the major steering components without the tubes, East West Off Road allows customers to source DOM tubing locally and reduce freight cost. This setup is useful for fabrication shops, off-road builders, and customers who want the core steering components but prefer to cut and fit tubing locally. Before installation, confirm DOM tube size, wall thickness, weld bung compatibility, steering length, thread direction, and fabrication requirements. Tie Rod Ends, Drag Link Ends, and Steering Hardware The kit includes premium 1-ton steering ends for the tie rod and drag link setup: ES2026R drag link end ES2027L drag link end ES2234L tie rod end ES2234R tie rod end Each steering end includes a grease fitting, castle nut, and cotter pin. These parts are important because they connect the steering linkage and must match the taper, weld bungs, jam nuts, and steering layout. During installation, builders should confirm seating, thread direction, clearance, and alignment. The kit also includes Dana 44 9/16-18 studs, conical washers, lock nuts, left and right 7/8-18 tube adapters / weld bungs, left and right 7/8-18 jam nuts, Dana 44 upper and lower ball joints, and a fully indexable 3 inch dropped pitman arm with 32 splines. A 2WD steering box is required for all crossover steering setups. Pitman arm spline count and steering box compatibility should be confirmed before ordering. Key Features and Benefits Complete 1-ton crossover high steer steering kit Designed for GM, Chevy, and Jeep Dana 44 applications USA-made EWO driver and passenger flat top knuckles Heavy-duty 1.25 inch billet high steer arms Precision-machined from domestic billet blocks Lifetime warranty on steering arms Bottom-down taper configuration Premium 1-ton tie rod ends and drag link ends included Dana 44 upper and lower ball joints included Dana 44 9/16-18 studs, conical washers, and lock nuts included Weld bungs and jam nuts included for locally sourced DOM tubing Fully indexable 3 inch dropped pitman arm with 32 splines included Ships without DOM tubing to help reduce freight costs What’s Included 1 Dana 44 Chevy driver side flat top knuckle with bottom-down taper 1 Dana 44 Chevy passenger side flat top knuckle with bottom-down taper 1 driver side high steer arm, 1.25 inch thick 1 passenger side high steer arm, 1.25 inch thick 1 ES2026R drag link end with grease fitting, castle nut, and cotter pin 1 ES2027L drag link end with grease fitting, castle nut, and cotter pin 1 ES2234L tie rod end with grease fitting, castle nut, and cotter pin 1 ES2234R tie rod end with grease fitting, castle nut, and cotter pin 8 high-strength Dana 44 9/16-18 studs 8 conical washers 8 lock nuts 2 left 7/8-18 tube adapters / weld bungs 2 right 7/8-18 tube adapters / weld bungs 2 left 7/8-18 jam nuts 2 right 7/8-18 jam nuts 2 Dana 44 lower ball joints 2 Dana 44 upper ball joints 1 fully indexable 3 inch dropped pitman arm, 32 splines Important Notes Before Ordering DOM tubing is NOT included. Customers can purchase DOM tubing locally to help reduce oversized shipping costs. A 2WD steering box is required for all crossover steering setups. California Proposition 65 warning applies. Before ordering, confirm Dana 44 axle fitment, GM/Chevy/Jeep application, steering box requirement, taper configuration, knuckle compatibility, pitman arm spline count, tube sizing, hardware fitment, and installation requirements. Ideal For This kit is ideal for: HD crossover steering kit builds Dana 44 crossover steering conversions GM Dana 44 high steer conversion projects Chevy Dana 44 crossover steering upgrades Jeep Dana 44 high steer conversion builds Lifted Chevy steering geometry improvements Rock crawling steering kit builds Overland steering upgrade projects Heavy-duty trail trucks Solid axle swaps Custom 4x4 steering upgrades Builders who want to source DOM tubing locally Fitment and Installation Notes This East West Off Road high steer kit is designed for GM, Chevy, and Jeep Dana 44 applications. Fitment should still be confirmed before ordering because Dana 44 axle variations, steering box setup, knuckle compatibility, taper direction, pitman arm spline count, and tube sizing can vary. Professional installation is recommended. Steering is a safety-critical system, and final setup should include proper taper seating, hardware torque, weld quality, jam nut setup, steering clearance, drag link angle, and alignment. If your build uses aftermarket knuckles, swapped axles, custom suspension, or modified steering parts, confirm compatibility before purchase. Why Builders Choose East West Off Road East West Off Road focuses on heavy-duty off-road steering components for GM, Chevy, Jeep, Dana axle, rock crawling, overlanding, lifted truck, and custom 4x4 applications. This East West Off Road high steer kit gives builders USA-made Dana 44 flat top knuckles, 1.25 inch billet high steer arms, premium 1-ton steering ends, ball joints, a dropped pitman arm, weld bungs, jam nuts, and mounting hardware in one package. For builders looking for an HD Crossover Steering Kit for a Dana 44 setup, this kit provides the main steering components while allowing local DOM tubing sourcing.
