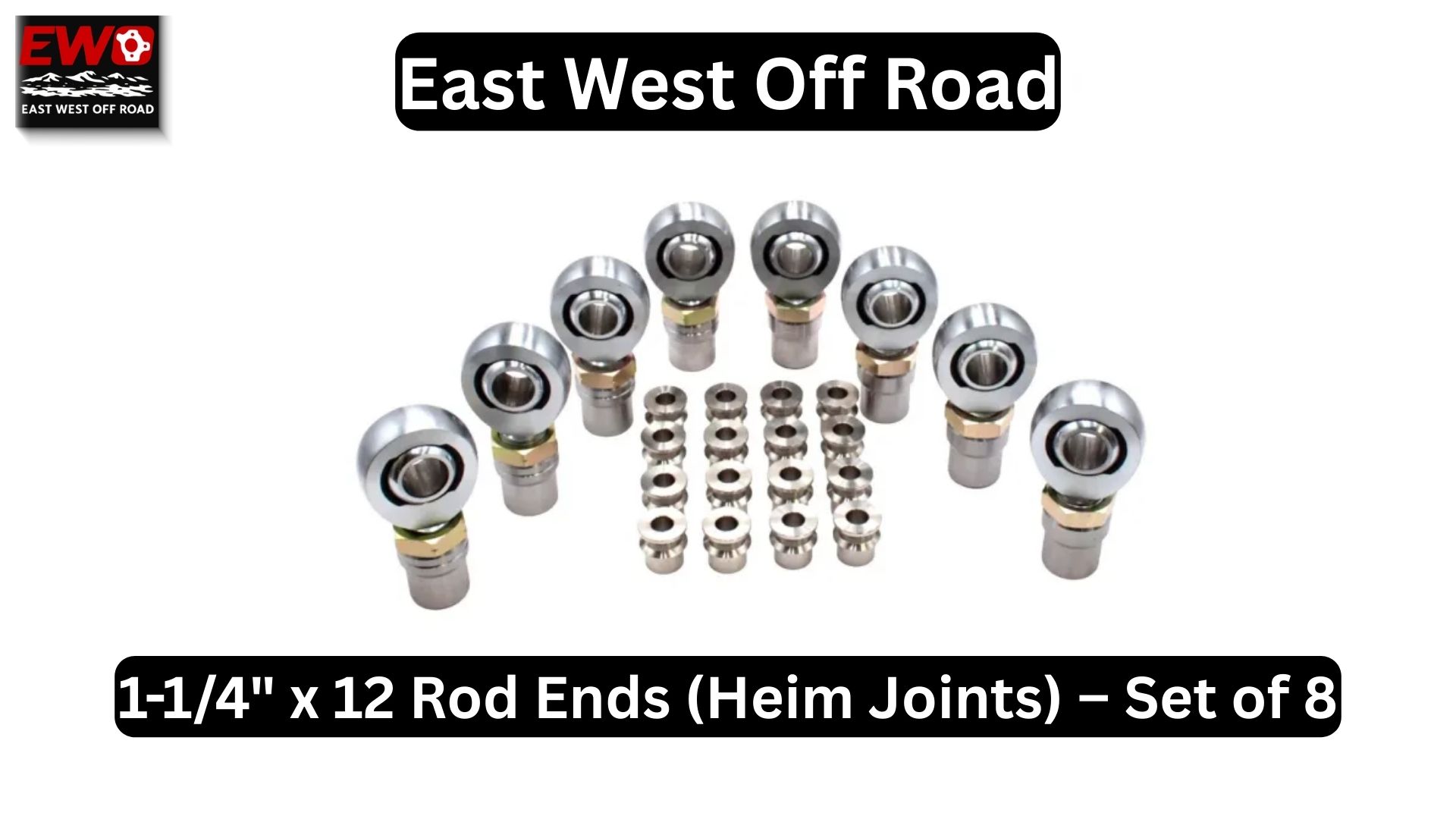

When you are fabricating a bulletproof suspension—whether constructing a dedicated rock buggy or executing a heavy-duty one-ton axle swap on a black K5 Blazer—factory-style bushings will quickly fail you on the trail. To handle the brutal leverage of oversized tires and extreme terrain, upgrading to a 1-1/4 Heim Joint Kit is the most critical foundational step for your custom build. The Superiority of 4130 Chromoly Heim Joints A successful Custom Off-Road Fabrication project requires hardware that will not stretch, bend, or shear under massive torque loads. Stepping up to a 1-1/4-12 Rod End Set guarantees you have the raw material strength needed to keep your axle properly located. Unmatched Radial Load Capacity Standard mild steel simply cannot compete with the resilience of a Heat-Treated Chromoly Joint. By forging these 1.25 Rod Ends from premium 4130 Chromoly, the resulting joint boasts an incredible 76,800 lbs radial load rod end capacity. This means that when your rig is wedged between boulders and you are heavy on the throttle, your Off-Road Suspension Parts will hold the line without catastrophic link separation. The Teflon Kevlar Lined Heim Joint Metal-on-metal contact creates friction, rapid wear, and a noisy, clunking suspension. To eliminate this, top-tier Spherical Rod Ends incorporate a Teflon Lined Heim Joint. This specialized Kevlar blend encases the inner 52100 Steel Bearing Heim, providing a self-lubricating surface that actively repels trail grit. Combined with a Hard Chrome Finish Rod End to prevent rust and pitting, these joints deliver incredibly smooth, maintenance-free performance. Assembling a Bulletproof Rock Crawler 4 Link Kit The joints themselves are only half the battle. To build a reliable Custom 4 Link Suspension, you must integrate them seamlessly into your chassis using precision-machined fabrication components. Precision 1045 Steel Tube Adapters Connecting your high-strength joints to your control arms requires a rugged Weld-In Tube Adapter. For builders utilizing industry-standard 2" OD DOM tubing, a 1-1/4 tube adapter for 2 inch OD DOM with a .250" wall thickness is the perfect fit. These 1045 steel tube adapters act as a flawless 1.5" Inner Diameter Tube Adapter, sliding right into your links for deep, strong welds. Choosing a 1.5" Hex Tube Bung also allows you to easily secure the link with a wrench while tightening your 1.25 Heim Jam Nuts. Maximizing Articulation with Misalignment Spacers Achieving extreme wheel travel requires massive pivot angles. If you mount a 1" Bore Heim Joint with standard hardware, it will bind against the mounting bracket long before your suspension reaches full droop. By installing 1 to 9/16 stainless misalignment spacers, you step the bolt diameter down to 9/16" while drastically increasing the range of motion. This is the secret to unlocking true flexibility for your Heavy Duty Rod Ends without causing mechanical interference. Frequently Asked Questions (FAQs) What components make up a 1-1/4 x 12 rod ends set of 8? A complete Heim Joint Suspension Kit includes 4 Right-Hand threaded joints, 4 Left-Hand threaded joints, 8 matching jam nuts, and 8 weld-in tube adapters. This gives you the exact hardware needed to fabricate four complete suspension links (upper and lower) for a single axle. Why do I need a Right Hand and Left Hand Heim Joint Kit? By threading a 1.25x1 Right Hand Heim on one end of a tube and a left-hand thread on the opposite end, you create a turnbuckle. This allows you to easily lengthen or shorten your Adjustable Suspension Links by spinning the center tube, making pinpoint adjustments to your wheelbase and pinion angle incredibly simple. Are these joints strong enough for an Off-Road Steering Kit? Yes. These components are exceptionally popular for Heavy Duty Steering Joints. Upgrading your factory tie rod and drag link with a High-Strength Heim Joint ensures your steering system can easily push 40-inch tires through the rocks without deflecting. What type of tubing is required for a Weld-in Suspension Joints setup? The included adapters are specifically designed as a Heim Joint Kit for DOM Tubing. They are the perfect .250 Wall DOM Tube Adapter, tailored to slide securely into 2-inch Outer Diameter tubing that has a 1/4-inch wall thickness.
