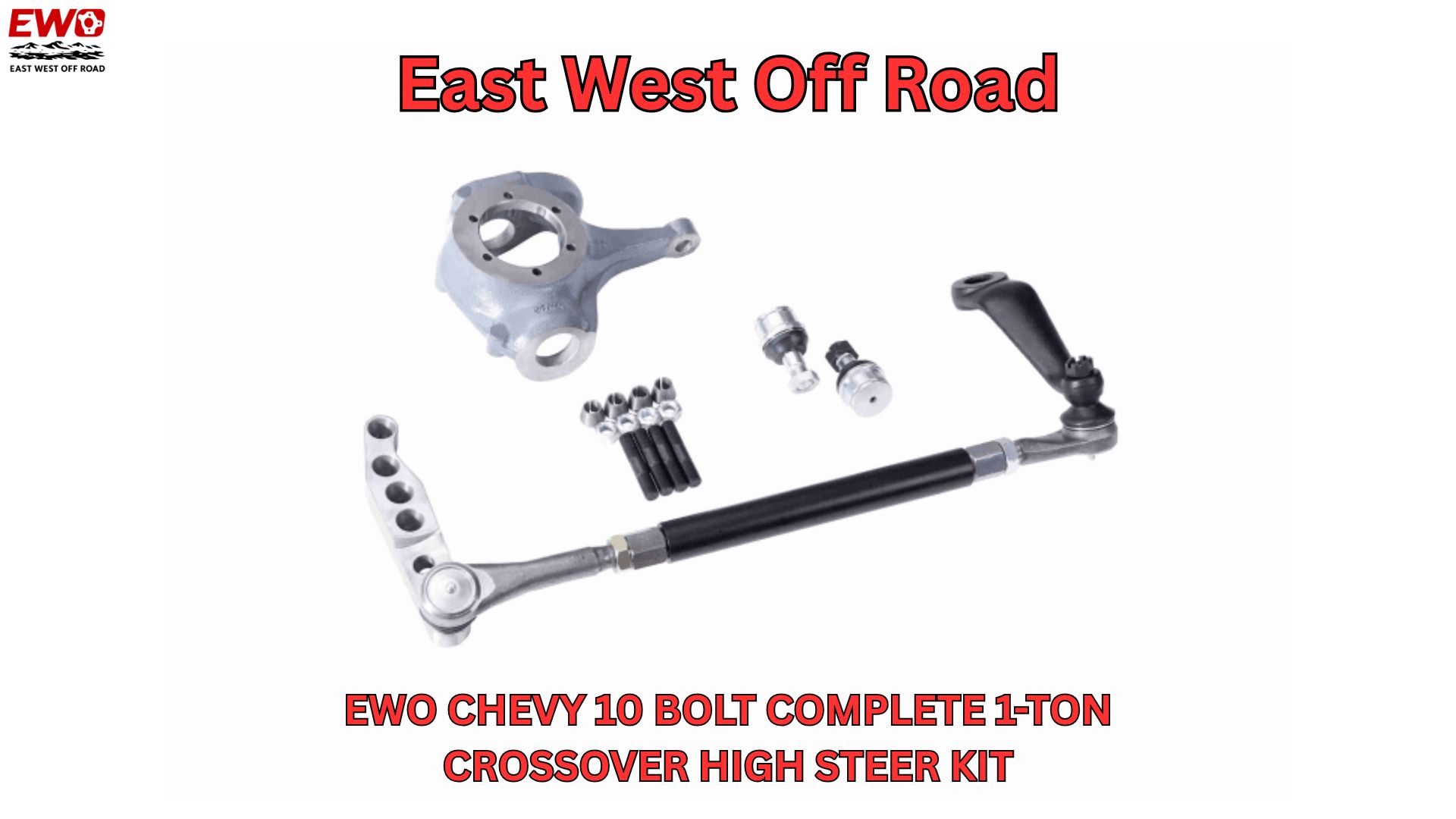

Mastering Your Rig: The Ultimate Chevy 10 Bolt Crossover Steering Kit Upgrade Taking your classic rig off the beaten path is an incredible experience, but dealing with sloppy, unpredictable steering can ruin the trip. If you have installed a suspension lift, the factory push-pull steering system is likely holding your truck back. Whether you are building a dedicated rock crawler or a reliable K5 Blazer High Steer System, upgrading your front end is essential for safety and control. Today, we are breaking down why upgrading to a Chevy 10 Bolt Crossover High Steer Kit is the single best modification you can make for your vehicle's handling. The Problem with Factory Push-Pull Steering The original steering linkage on solid-axle GM trucks works fine at stock ride height. However, once you add lift springs, the angle of the drag link becomes extremely steep. Why You Must Eliminate Bump Steer Lifted Chevy Trucks Experience Because of this steep angle, every time your suspension compresses or droops over a bump, it forces the steering wheel to violently turn on its own. The only permanent way to Eliminate Bump Steer Lifted Chevy trucks suffer from is by flattening that steering angle. A true Offroad crossover steering Dana 44 or Chevy 10 bolt setup achieves this by routing the drag link horizontally across the axle, completely transforming your driving experience. The Solution: East West Offroad Steering Kit When it is time for a Chevy 10 bolt steering upgrade, you need components that won't leave you stranded. The EWO complete crossover high steer kit provides unmatched American-made durability for anyone doing a Dana 44 to 10 Bolt Steering Swap. A Premium Flat Top Knuckle Conversion Kit The core of this system is the USA-made Dana 44 high steer knuckle. It comes machined with a "Bottom Up" taper, though a slit tapered insert is included if you prefer a "Bottom Down" orientation. This Dana 44 High Steer Kit with Knuckle gives you the perfect, reinforced mounting point for a proper Dana 44 crossover steering setup. Furthermore, it includes a premium Dana 44 upper lower ball joint kit featuring metal-on-metal construction for extreme longevity. Heavy Duty Drag Link Kit Chevy and Tie Rod Ends Connecting the steering box to your new knuckle requires serious strength. This kit acts as a complete GM 1 Ton Tie Rod Upgrade. It features a massive DOM tubing drag link kit consisting of 43 inches of 1.50” x .250” wall tubing. Paired with this are heavy-duty ES2026R ES2027L drag link ends, utilizing metal to metal tie rod ends with advanced spring technology that outperforms standard replacements. Inside the EWO Complete Crossover High Steer Kit If you want Heavy duty crossover steering Dana 44 performance, this kit leaves nothing out. Billet Arms and Superior Hardware Forget cheap cast metals. This hd crossover steering kit utilizes whopping 1.25 inch billet high steer arms made from domestic billet blocks and machined in-house for a lifetime warranty. These 4-hole style arms are secured using 4 high-strength Dana 9/16” studs, conical washers, and lock nuts to guarantee they never sheer off under pressure. The kit also includes all necessary 7/8 – 18 left and right weld bungs and jam nuts for your custom drag link. The Mandatory 2wd Steering Box Crossover Swap To successfully execute a Chevy 10 bolt steering conversion, you must change how your steering gear box operates. Factory 4WD boxes steer front-to-back. You will need to perform a 2wd steering box crossover swap so the pitman arm swings side-to-side. Once swapped, the included 3 inch drop forged pitman arm 32 spline (fully indexable) will bolt right on, perfectly aligning your new heavy-duty steering. Frequently Asked Questions (FAQs) What axles will this crossover steering kit fit? This highly adaptable kit is designed to function seamlessly as a crossover setup for all Dana 44 and Chevy 10 Bolt front axle applications. Why are the tie rod ends described as "metal to metal"? Unlike standard factory joints that use a plastic or nylon internal lining (which quickly wears out and creates "slop" under the stress of large tires), metal to metal tie rod ends utilize steel-on-steel friction surfaces combined with advanced spring technology. This ensures a tighter, much stronger joint that lasts significantly longer on the trail. Do I have to weld the drag link myself? Yes. Because every lifted truck has slightly different geometry (due to varying lift heights and axle placements), the drag link comes as a blank DOM tube. You must measure the exact distance needed for your rig, cut the tube, and weld the threaded inserts (bungs) into the ends. We highly recommend having a certified welder perform this step for safety.
