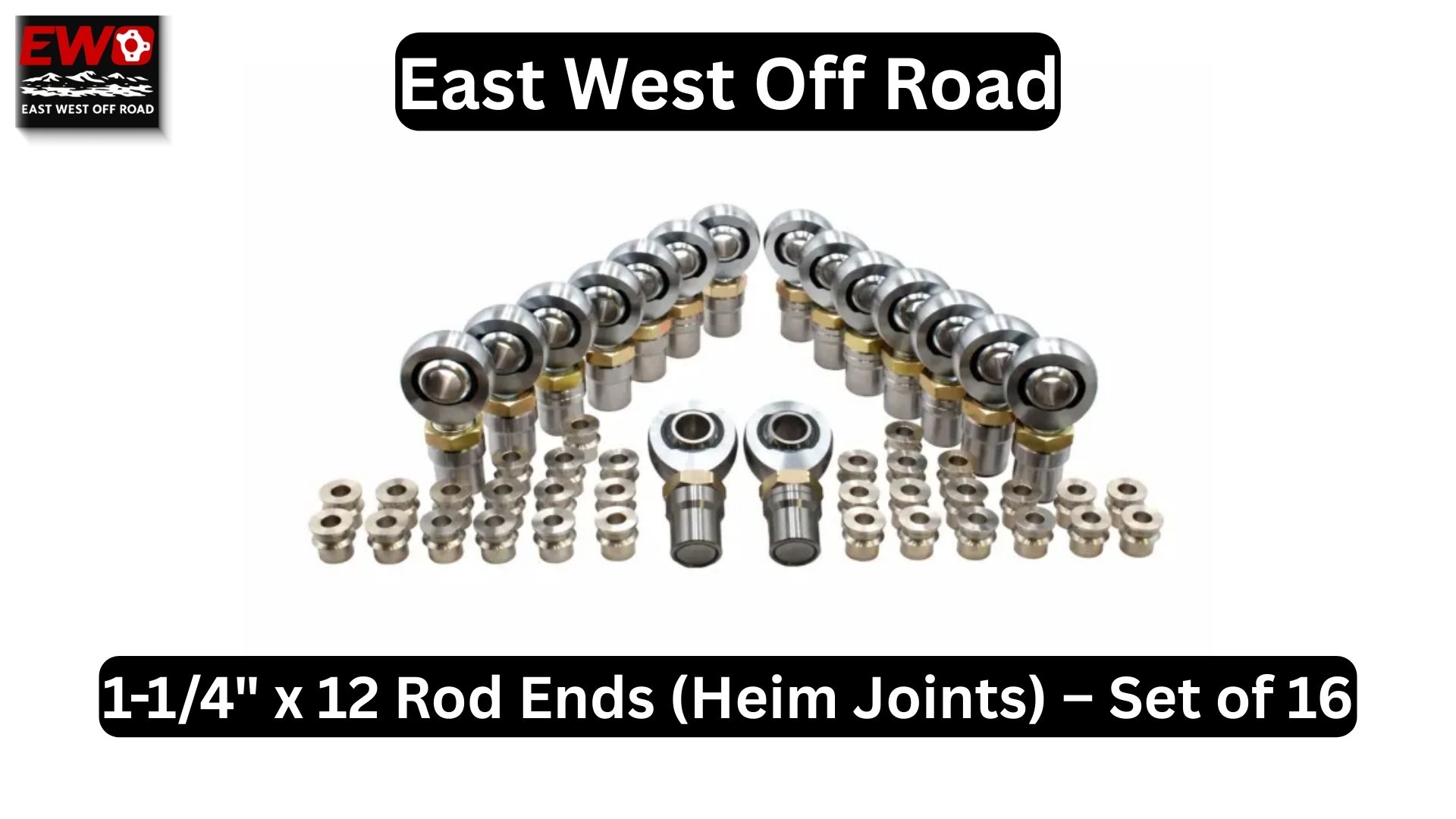

Ultimate 1-1/4 Heim Joint Kit Guide: Master Your Off-Road Suspension Date: 11th April When pushing your rig to the absolute limit, your Off-Road Suspension Parts need to be virtually indestructible. For fabricators building a Custom 4 Link Suspension, replacing weak factory components with a heavy-duty 1-1/4 Heim Joint Kit is the most critical upgrade you can make. Let’s dive into why these massive joints are the go-to choice for serious off-road dominance and how they keep your chassis moving flawlessly over the toughest obstacles. The Power of 4130 Chromoly Heim Joints In the world of custom fabrication, the strength of your raw materials dictates your survival on the trail. Mild steel components stretch and deform under the extreme torque of locked differentials and low gearing, making high-grade steel an absolute necessity. Conquering Trails with a 76,800 lb Radial Load The core of a premium 1-1/4-12 Rod End Set is meticulously heat-treated 4130 Chromoly. This specific alloy provides incredible tensile strength, resulting in a staggering 76,800 lbs radial load rating. When the entire weight of your rig drops off a ledge onto a single suspension link, these Heavy Duty Rod Ends absorb the catastrophic force without stretching or shearing, ensuring you drive home instead of reaching for a winch. The Self-Lubricating Teflon Lined Heim Joint Traditional suspension pivots rely on grease, which acts as a magnet for trail grit, sand, and mud. Once that debris mixes with the grease, it grinds away the internal bearings. Upgrading to a Teflon Kevlar lined heim joint solves this entirely. The self-lubricating liner tightly hugs the 52100 Steel Bearing Heim, keeping movement smooth while actively pushing out abrasive dirt. This makes your Spherical Rod Ends completely maintenance-free. Designing a Flawless Rock Crawler 4 Link Kit A world-class off-road suspension system isn't just about strong joints; it is about how those joints integrate with your chassis to provide seamless, bind-free travel. Precision Fitment with 1045 Steel Tube Adapters To connect these massive rod ends to your suspension tubing, you need a structurally sound welding surface. A complete 1-1/4 Heim Joint Kit includes specialized 1045 steel tube adapters that serve as the perfect .250 Wall DOM Tube Adapter. Machined to slide tightly into 2" OD DOM tubing with a 1.5" inner diameter, they provide a thick, robust interface for deep TIG or MIG welds, ensuring your links never pull apart under tension. Extreme Flex with Misalignment Spacers If your axle cannot drop, your tires cannot find traction. To achieve maximum axle articulation without binding the joint against the mounting tabs, fabricators rely on Heim Joints with Misalignment Spacers. These high-strength stainless steel inserts step the massive 1" Bore Heim Joint down to a smaller 3/4" or 9/16" bolt size. This engineered reduction allows the joint housing to pivot at radical angles safely, unlocking the true flex capabilities of your off-road rig. FAQs: Upgrading Your Heavy Duty Rod Ends Why does this kit include 1.25x1 Right Hand Heim and Left Hand Heim threads? By threading a 1-1/4-12 Right Hand Thread on one side of your link and a left-hand thread on the other, you create a turnbuckle effect. This gives you Adjustable Suspension Links, allowing you to fine-tune your pinion angle and wheelbase simply by loosening the 1.25 Heim Jam Nuts and twisting the tube—no unbolting required. What is the benefit of a Hard Chrome Finish Rod End? Since trail rigs are constantly exposed to water, mud, and corrosive elements, raw steel will quickly rust. The hard chrome finish acts as an impenetrable shield over the Heat-Treated Chromoly Joint, preventing surface pitting and ensuring the threads remain clean and easy to adjust. Can I use a 1-1/4 Heim Set for an Off-Road Steering Kit? Yes! Builders frequently use these exact joints to fabricate indestructible tie rods and drag links for 1-ton axle conversions. Their massive shear strength completely eliminates the steering wander and flex associated with factory tie rod ends pushing 40-inch tires. Do I need to grease these joints after a dusty run? No. The Teflon Kevlar liner makes the joint fully self-lubricating. Adding grease will only attract dirt and prematurely destroy the Kevlar. A simple rinse with a hose is all the maintenance they need.
