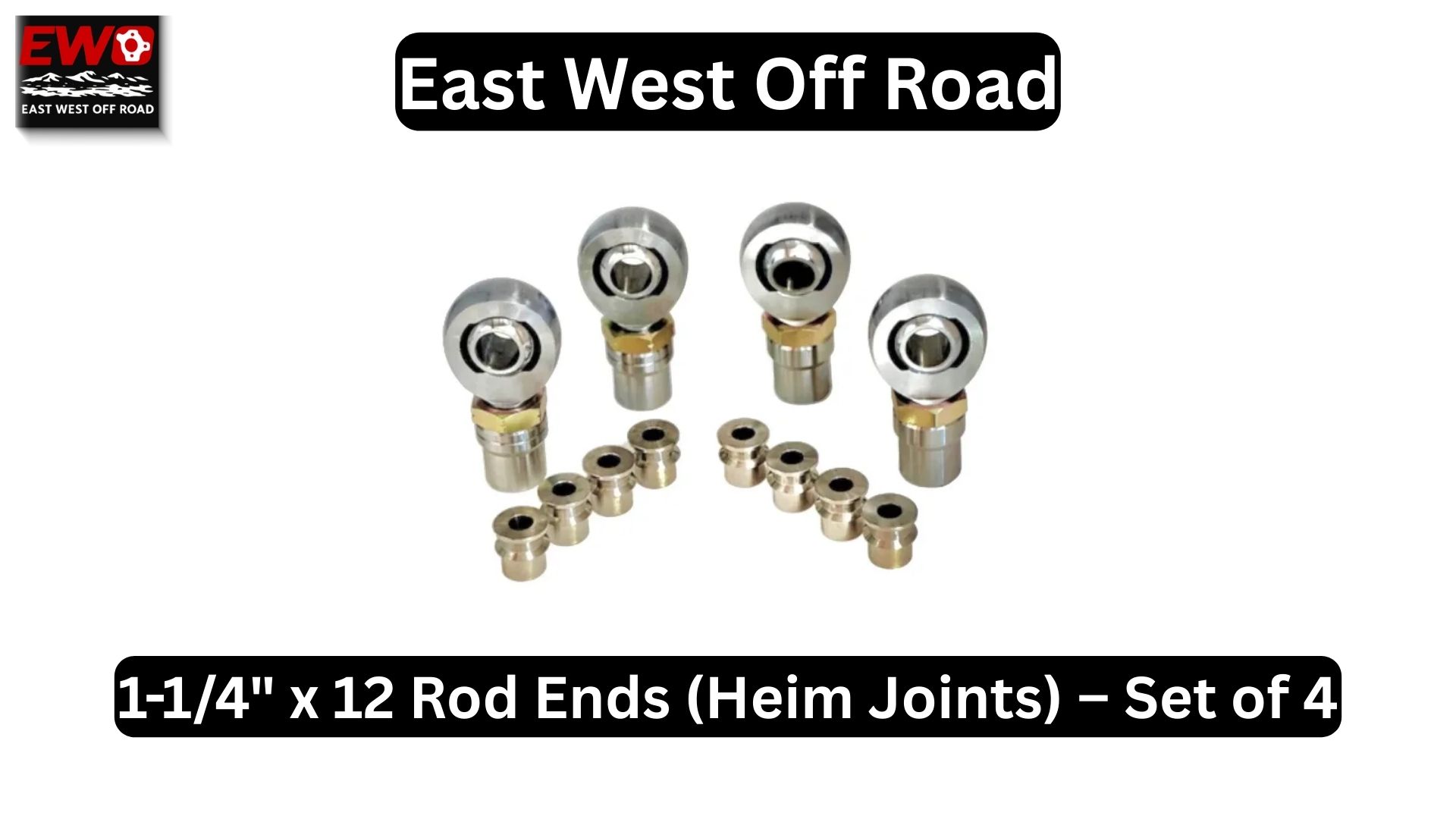

Engineering the Perfect Custom Rig: Why a 1-1/4” Heim Joint Kit is Non-Negotiable When you are pushing the limits on a vertical climb or navigating a high-speed wash, your suspension is under a level of stress that would snap OEM components like toothpicks. For the serious fabricator, "good enough" doesn't exist. To ensure your rig survives the trail, you need to build with the 1-1/4 Heim Joint Kit—the heavy-duty solution for those who refuse to compromise on strength. The Superiority of Heat-Treated Chromoly Components The heart of any high-performance suspension system lies in the materials. While standard steel rod ends might be tempting for a budget build, they often lack the tensile strength required for extreme articulation. Professional builders prioritize Chromoly Heim Joints because they are engineered from 4130 heat-treated chromoly, providing a massive safety margin. High-Strength Radial Loads and 52100 Steel This 1.25 Rod End Kit isn't just about looks; it is about raw numbers. Rated for a 76,800 lb radial load, these joints can support the weight of a full-size trophy truck or a heavy-duty rock bouncer. The internal 52100 steel bearing heim is precision-ground to ensure that your movement remains fluid, even when the joint is under thousands of pounds of pressure. The Advantage of a Teflon Kevlar Lined Heim Joint Maintenance on a trail rig can be a nightmare. By choosing a Teflon Kevlar lined heim joint, you are investing in a self-lubricating system. This specialized liner prevents metal-on-metal contact, which: Reduces noise and vibration (NVH). Prevents the ingress of dirt and grit. Eliminates the need for external grease, keeping your 1.25 Rod Ends cleaner for longer. Precision Fabrication for Custom 4-Link Suspensions Building a Rock Crawler 4 Link Kit or a custom steering setup requires components that are easy to install but impossible to break. The geometry of your links depends on the accuracy of your threaded ends and how well they integrate with your chassis. Weld-In Tube Adapters for DOM Tubing A rod end is only as strong as its attachment to the link. This kit includes 1045 steel tube adapters specifically machined for a precision fit. Whether you are using 2 inch OD DOM tube with 1/4 inch wall thickness or specialized chrome-moly tubing, these fabrication tube adapters provide a deep welding surface. This ensures that the 1.5" Inner Diameter Tube Adapter becomes a structural extension of your link rather than a weak point. Adjustability with Right and Left Hand Threads One of the biggest headaches in Custom Suspension Links is having to remove the bolt every time you need to adjust your alignment. By utilizing a 1-1/4-12 Right Hand Thread on one side and a left-hand thread on the other, you can adjust the length of the link simply by turning the tube. This "turnbuckle" style adjustment is a staple in professional off-road steering kit design. Maximizing Articulation with Misalignment Spacers To achieve the "limitless" flex seen on competitive rock crawlers, you cannot rely on the rod end alone. You must utilize 1.25 Heim Misalignment Spacers. These spacers reduce the bore size (typically from 1" to 9/16") but allow the ball to rotate much further within the housing before the body of the joint hits your mounting brackets. This extra clearance is vital for keeping your tires on the ground during extreme articulation. FAQs About Heavy Duty Rod Ends What is the benefit of a 1045 steel tube adapter over 1020? 1045 steel has a higher carbon content than 1020, offering better strength and wear resistance. This is particularly important for the threaded portion of the adapter, where you want maximum thread engagement and resistance to stripping under load. Can I use these for my daily driver? Yes. While they are designed for Custom Off-Road Fabrication, the Teflon-Kevlar lining makes them much quieter than traditional metal-on-metal joints, making them a popular choice for high-end street/strip or dual-purpose rigs. What size bolt do I need with the misalignment spacers? With the optional 1 to 9/16 stainless misalignment spacers, you will use a 9/16" grade 8 bolt. This setup is the standard for most heavy-duty link brackets in the industry. Are these rod ends heat-treated? Yes, the 4130 Chromoly bodies are heat-treated to achieve the 76,800 lb radial load rating, ensuring they won't deform even under the weight of a heavy 4x4.
