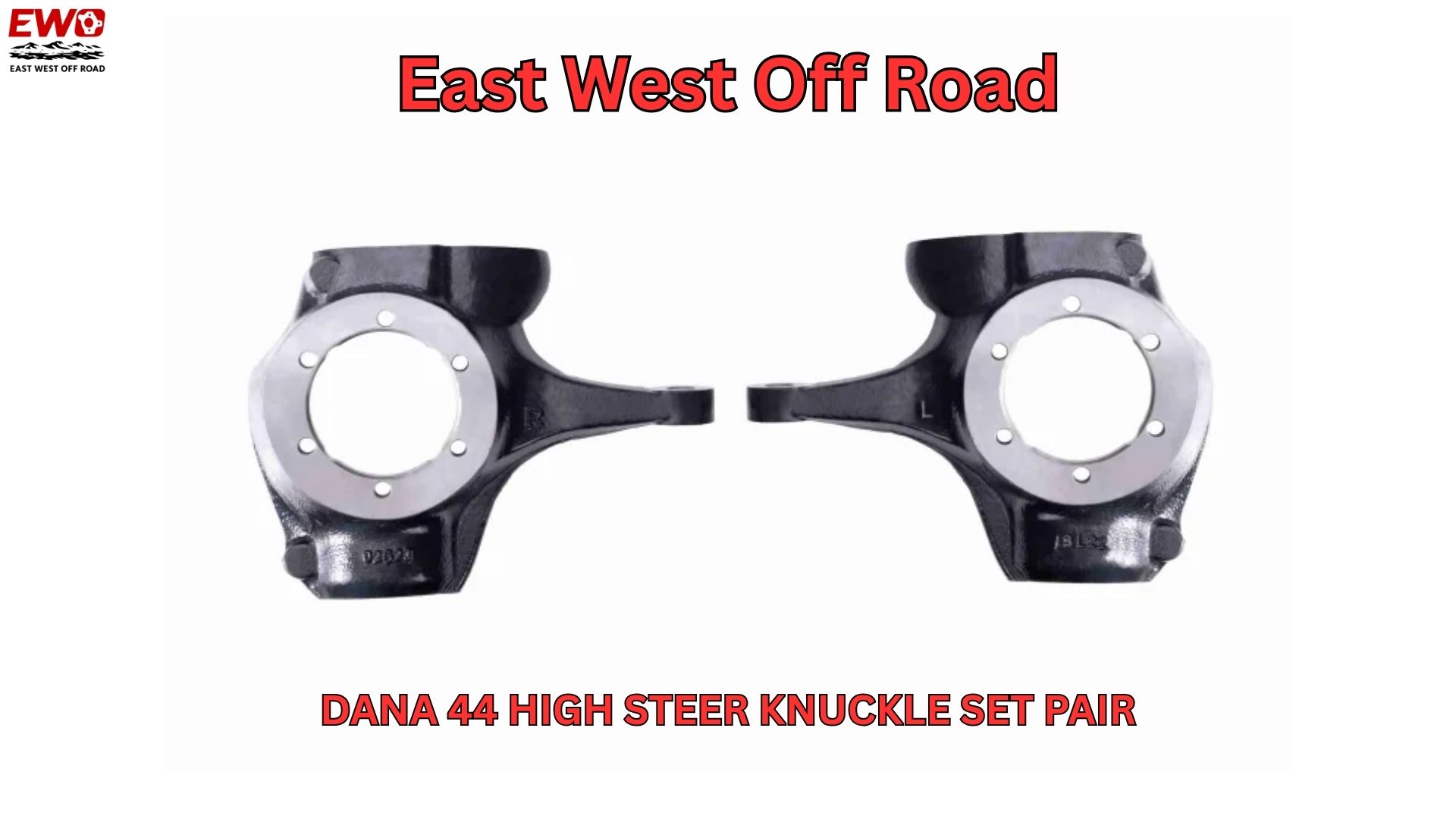

Dana 44 Steering Arm Mount: The Precision Foundation of Your High Steer System The Critical Interface: Where Steering Force Meets the Knuckle In the architecture of a high-performance steering system, few interfaces are as critical as the Dana 44 steering arm mount. This precisely machined surface on flat top knuckles Dana 44 serves as the fundamental connection point where steering forces transfer from your steering arms to your wheels. When this interface is compromised—whether through improper machining, inadequate material strength, or poor design—the entire steering system suffers from deflection, unpredictable behavior, and potential failure. For those undertaking a serious off road steering upgrade, understanding and selecting the correct steering arm mounting solution is not a detail; it's a foundational safety consideration. The East West Off Road Dana 44 flat top knuckle pair exemplifies engineering excellence at this critical junction, providing a milled surface of exceptional flatness and strength that becomes the bedrock of predictable, reliable steering. Engineering the Perfect Mounting Surface The physics of steering are unforgiving. When you turn the wheel, immense forces travel through the drag link to the steering arm, which then transfers this rotational force into the knuckle via the Dana 44 steering arm mount. If this mounting surface isn't perfectly flat and parallel to the arm, several issues occur: the arm can rock under load creating slop, mounting bolts can experience uneven shear stress, and the steering geometry can subtly change as components deflect. This is why machined steering knuckles are non-negotiable for performance applications. The East West Off Road knuckles undergo precise CNC milling to create a mounting surface with a specific surface finish and flatness measured in thousandths of an inch. This ensures that when a high-steer arm is torqued down, it makes 100% contact across the entire Dana 44 steering arm mount area, eliminating points of concentrated stress and providing a solid, unwavering foundation for steering input. Integration with the 6 Bolt Spindle Interface The Dana 44 steering arm mount does not exist in isolation. Its precise location and orientation are geometrically tied to another critical feature: the 6 bolt spindle knuckle mounting surface. These two machined planes must be parallel to ensure that when the spindle (which carries the wheel bearing and brake rotor) is bolted on, the wheel remains perfectly upright relative to the steering arm's plane of motion. Any error here introduces bump steer or alignment drift. This is where true manufacturing precision separates quality aftermarket Dana 44 parts from inferior options. The relationship between these surfaces is maintained through the entire machining process on a single setup, guaranteeing that the steering arm mounts squarely to a knuckle that will position your wheel exactly as intended. Material Strength: The Foundation of a Reliable Mount Precision machining is only effective if the underlying material can maintain its shape under stress. This is why ductile iron steering knuckles are the material of choice for this critical application. Ductile iron provides the ideal combination of machinability, stiffness, and impact resistance. The Dana 44 steering arm mount surface, machined into this robust material, will not compress, warp, or develop fatigue cracks under the repeated high-load cycles of off-road use. This is especially crucial for a rock crawler steering kit, where steering components are regularly subjected to impacts from rocks and sudden, high-force directional changes. The heavy duty Dana 44 knuckles from East West Off Road leverage this material science to ensure the mounting surface remains true for the life of the component, providing a permanent solution as part of a Dana 44 axle upgrade. System Integration: The Mount as Part of the Whole The Dana 44 steering arm mount is the keystone of the entire high steer conversion kit. Its design dictates compatibility with steering arms and influences the final steering geometry. The standardized flat-top, 6-hole pattern used on these knuckles is the industry norm, ensuring compatibility with a wide range of high-quality steering arms from various manufacturers. This allows builders the flexibility to select arms with the exact drop, length, and tie rod mounting height needed for their specific vehicle and lift. When combined with the correct arms and linkage, this mount enables the creation of a true Dana 44 crossover steering kit, where the tie rod runs above the axle in a flat, horizontal plane and the drag link operates at a parallel, optimized angle—the gold standard for eliminating bump steer on lifted vehicles. Vehicle-Specific Applications and Versatility The precision-engineered mount enables this component to serve multiple iconic platforms. Squarebody Chevy Transformation: For owners of classic trucks, this system is the cornerstone of the ultimate squarebody steering upgrade. It replaces the outdated factory mount on Chevy Dana 44 steering knuckles with a modern, precision-engineered surface. This allows classic trucks to utilize modern high-steer technology, dramatically improving safety and handling while maintaining a bolt on high steer installation that respects the vehicle's originality. Cross-Platform Functionality: The intelligent design ensures this precise mount serves multiple applications. The same Dana 44 steering arm mount pattern functions flawlessly on both dedicated Dana 44 high steer knuckles and, due to shared outer dimensions, as GM 10 bolt high steer knuckles. This versatility is invaluable for builders with multiple projects or those who demand the highest quality component regardless of the specific axle designation. Installation: Securing the Foundation The installation process for a system built around this precision mount emphasizes correct procedure to preserve its benefits. Surface Preparation: The Dana 44 steering arm mount surface and the mating surface of the steering arm must be impeccably clean and free of debris, paint, or corrosion. Even a small particle can cause uneven clamping force. Hardware Selection: Using the correct Grade 8 or better fasteners is essential. The bolts must be the proper length to fully engage the threads in the knuckle without bottoming out. Torque Sequence: Steering arms should be tightened in a star or cross pattern to the manufacturer's specified torque value. This ensures even pressure across the entire Dana 44 steering arm mount interface, preventing distortion and ensuring solid contact. This meticulous approach guarantees that the engineered precision of the machined surface translates directly into performance on the vehicle. The Result: Predictable, Confidence-Inspiring Steering Investing in a steering system founded on a precision Dana 44 steering arm mount yields tangible benefits every time you drive: Zero Deflection Steering: The solid connection eliminates sponginess or dead zone in the steering wheel. Consistent Alignment: The stable mount prevents steering geometry from changing under load, maintaining your alignment settings. Durability: The robust ductile iron steering knuckles and precise interface withstand abuse that would warp or damage lesser components. Safety: A secure, high-strength mount is the first line of defense against catastrophic steering failure. For anyone investing in lifted truck steering parts, this interface is where quality is proven. It transforms a collection of parts into a cohesive, reliable system. Conclusion: Build Your Steering System on a Precision Foundation The steering system is a chain, and its strength depends on every link. The Dana 44 steering arm mount is perhaps the most critical link of all in a high-steer conversion—the point where control is literally transferred to the wheels. Choosing a component with a haphazardly finished or weak mounting surface undermines the entire investment in your off road steering upgrade. The East West Off Road Dana 44 high steer knuckles are engineered with an unwavering focus on this crucial detail, providing a machined, durable foundation you can trust. Ready to build your high-steer system on a foundation of precision? Explore the engineering specifications, detailed imagery of the mount surface, and secure the cornerstone of your steering transformation. Begin with the component where precision matters most: https://www.eastwestoffroad.com/product/dana-44-high-steer-knuckle-set-pair. Frequently Asked Questions What is the bolt pattern on the Dana 44 steering arm mount? The Dana 44 steering arm mount on these flat top knuckles Dana 44 features the standard industry 6-hole flat top pattern. This specific pattern ensures compatibility with the vast majority of aftermarket high-steer and crossover steering arms available for Dana 44 and GM 10-bolt axles, giving you maximum flexibility in component selection for your rock crawler steering kit. Can this mount surface be damaged by over-torquing the steering arm bolts? While the ductile iron steering knuckles are extremely strong, over-torquing can strip the threaded holes. It is crucial to follow the manufacturer's recommended torque specification (typically between 130-150 ft-lbs for Grade 8 bolts) using a calibrated torque wrench. The precision-machined surface itself is very resistant to damage, but proper installation is key to maintaining integrity. Do I need to use any sealant or anti-seize on the mounting surface? No. The Dana 44 steering arm mount and the bottom of the steering arm should be clean, dry, and free of any lubricant or sealant. These surfaces are designed for metal-to-metal contact. Applying a product can change the clamping friction, potentially leading to improper torque values and a less secure connection. Will aftermarket steering arms fit this mount correctly? Yes, any steering arm designed for the standard Dana 44 flat top knuckle pattern will fit this Dana 44 steering arm mount. The machined steering knuckles provide a true, flat surface that ensures proper fitment with quality arms. It is always recommended to test-fit the arm before final assembly to ensure perfect contact. How does this compare to the mount surface on a factory knuckle? Factory Chevy Dana 44 steering knuckles have an integrated, forged steering arm for a Y-link setup, not a flat mounting surface. The aftermarket Dana 44 flat top knuckle pair provides a blank, precision-machined canvas specifically for mounting high-steer arms. This is what enables the change to crossover steering geometry, making it a fundamental part of a true high steer conversion kit.
