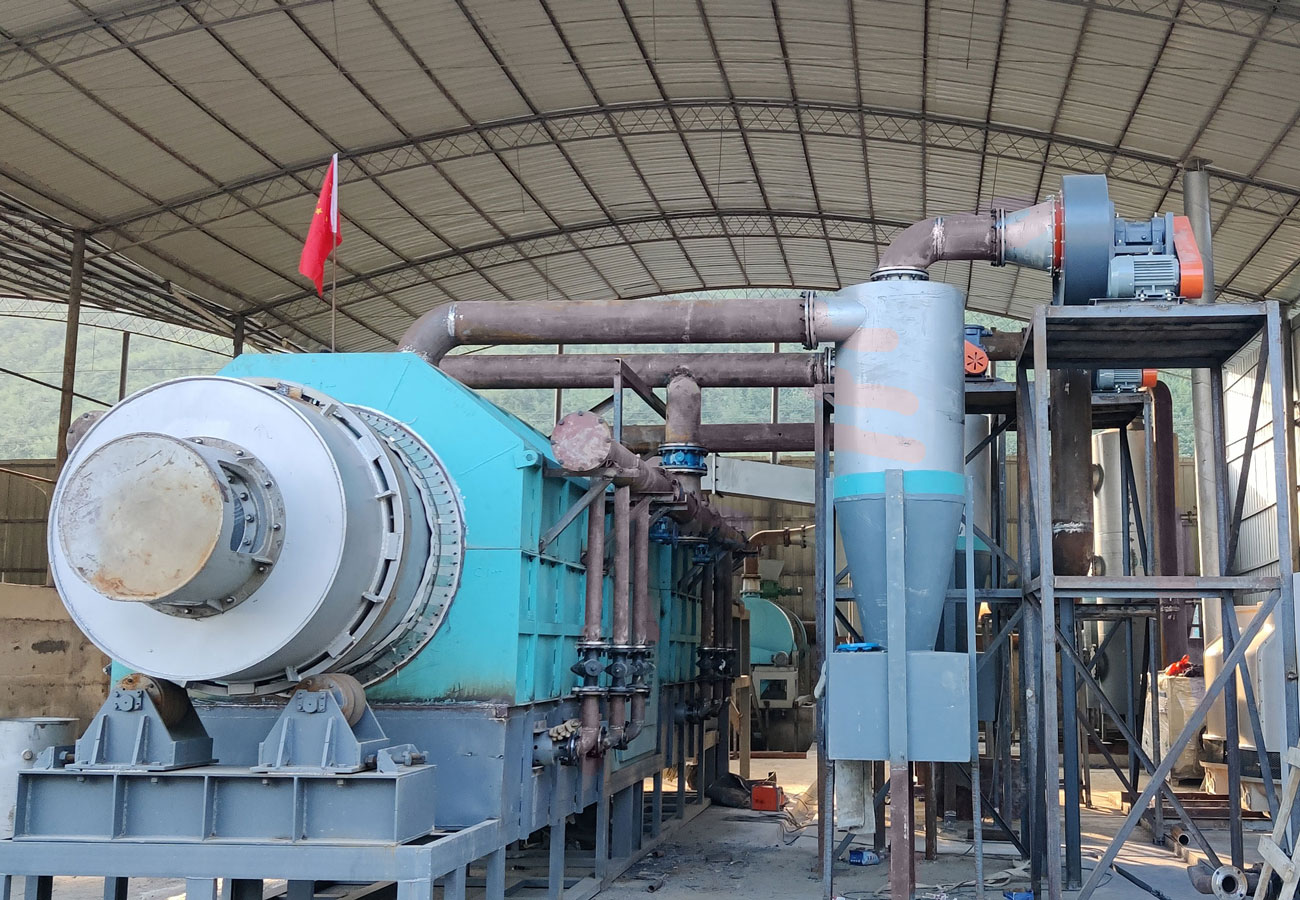

Charcoal Production Machine - | Waste to Charcoal Model BST-J12 BST-J18 BST-J40 BST-05 Pro (skid-mounted) BST-10 BST-30 BST-50 Input Capacity 12m³/h/batch 18m³/h/batch 40m³/h/batch 0.3-0.5m³/h (300kg/h) 2-4m³/h (1000kg/h) 7-9m³/h (3000kg/h) 10-15m³/h (5000kg/h) Reactor Size φ1900mm*L4500mm φ1900mm*L6600mm φ2800mm*L7100mm φ830mm*L5500mm φ1300mm*L14051mm φ1700mm*L14180mm φ2000mm*L14260mm Land for Equipment (L*W*H, Standard Configuration) 9m*6m*6m 12m*6m*7m 15m*18m*7m 10m*8m*3.9m 29m*15m*5m 30m*15m*8m 35m*18m*9m Weight (Standard Configuration) 18T 22T 34T 15T 35T 35T 49T Energy Consumption (Standard Configuration) 11kw/h 13.5kw/h 25kw/h 31kw/h 34.7kw/h 61.5kw/h 116kw/h Working Method Batch Fully continuous Feeding Requirement / Size: ≤20mm; moisture: ≤15%; strong liquidity
